YC-GQ142GOS Tubular Centrifuge

YC-GQ142GOS is an overspeed tubular centrifuge based on YC-GQ142G. The rotating speed can reach 17000rpm, and centrifugal force is as high as 23000×g. The noise is below 75 dB, and the operation is stable. The contact material is 316L stainless steel.

YC-GQ142GOS Tubular Centrifuge -159
Inquire Now

Applications

● Pharmaceutical

● Chemical industry

● Food processing

● Biological product

● Blood product


Features

● Auto-control

● Continuous operation

● Operation safety

● Save manpower

● Excellent cooling effect

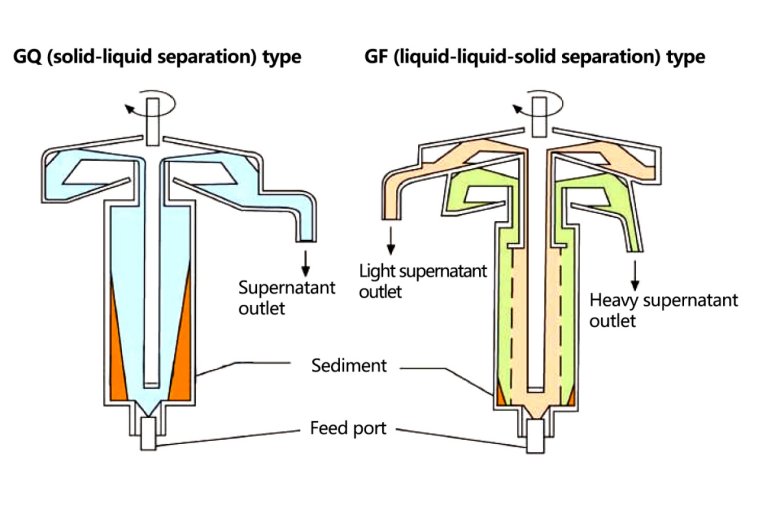

Working principle

Separation effect display






  • Technical Details
  • URS
  • Download

Model

YC-GQ142G

YC-GQ142GOS

Structure type

Square box type;
front door floor type

Square box type;
front door floor type

Centrifugal force

15,572×g

23,000×g

Rotating speed

14000r/min

17000r/min

Volume of drum

11L

11L

Throughput

100~1000L/h

100~1000L/h

Water supply capacity

3000L/h

3000L/h

Effective length of drum

820mm

820mm

Inner diameter of drum

142mm

142mm

Outlet diameter

Φ38mm

Φ38mm

Inlet diameter

Φ10mm

Φ10mm

Power

3kW, 380V/50Hz

3kW, 380V/50Hz

Weight

950kg

950kg

Dimensions

910×620×1770mm

910×620×1770mm


User Requirement Specification for users to fill in the equipment parameter requirements.

Feel free to download and send us your URS, and we will quote you a more precise equipment per your URS.


URS - Centrifuge - YOCELL

Download

Brochure

User’s Manual

    YC-GQ142GOS Tubular Centrifuge
  • Tubular centrifuge -user's manual
Thank you for your interest!

Please enter your e-mail address and we will send you the User’s Manual ASAP
